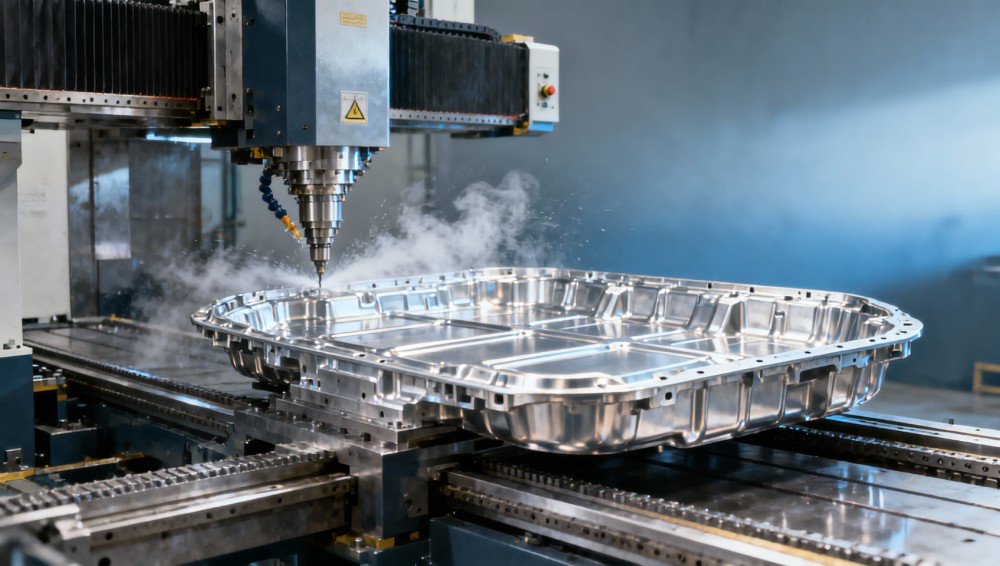

How Automotive Industry Machinery Achieves Sub-100-Micron Tolerance on Aluminum EV Battery Housings

Achieving sub-100-micron tolerance on aluminum EV battery housings demands precision industrial machinery for automotive industry—engineered for rigidity, thermal stability, and micron-level repeatability. This article explores how advanced CNC machining centers, high-dynamic milling systems, and integrated metrology solutions deliver such extreme accuracy—highlighting key industrial machinery features, specifications, and OEM capabilities. Whether you’re an information researcher, procurement professional, or enterprise decision-maker, discover why industrial machinery benefits extend beyond throughput to yield, compliance, and total cost of ownership across the EV supply chain.

Why Sub-100-Micron Tolerance Is Non-Negotiable for EV Battery Housings

Aluminum EV battery housings serve as structural, thermal, and electromagnetic shielding components—requiring dimensional stability within ±50–80 microns across critical sealing surfaces, mounting flanges, and coolant channel interfaces. Deviations beyond 100 microns risk gasket compression failure, coolant leakage, cell misalignment, and thermal runaway propagation under crash or thermal cycling conditions.

Industry benchmarks confirm that Tier-1 suppliers now enforce ≤75 µm geometric tolerance (per ISO 1101) on housing base plates and module alignment rails. This is not a theoretical target—it’s a production-floor requirement tied directly to OEM warranty clauses and UL 2580/GB 38031 compliance audits.

Unlike traditional powertrain parts, EV housings combine large footprint (up to 1,800 × 1,200 mm), thin walls (2.5–4.0 mm), and complex internal ribbing—making them highly susceptible to thermal distortion, clamping-induced warpage, and vibration-induced chatter. Achieving sub-100-micron repeatability therefore hinges less on tooling alone and more on holistic machine system performance.

Three System-Level Requirements Driving Machine Selection

• Thermal Symmetry: Machine bed and column must maintain ≤0.5°C temperature gradient across full travel (X/Y/Z ≥ 2,000 × 1,500 × 800 mm) over 8-hour shifts—verified via embedded PT100 sensor networks.
• Dynamic Stiffness: Minimum 120 N/µm static stiffness in Z-axis and ≥85 N/µm in X/Y at 300 Hz—measured per ISO 230-2 Annex B using impact hammer testing.
• Metrology Integration: On-machine laser interferometer or capacitive probe systems capable of real-time compensation at ≤150 ms cycle time per measurement point.

How Industrial Machinery Delivers Micron-Level Repeatability

Sub-100-micron capability emerges from synchronized subsystem performance—not isolated component specs. Leading OEMs deploy hybrid architectures combining granite or mineral-cast bases, hydrostatic guideways, direct-drive spindles (≥25,000 rpm), and dual-loop position feedback (linear scale + rotary encoder).

For example, high-dynamic 5-axis milling centers used by CATL and BYD suppliers achieve 0.003 mm volumetric accuracy (ISO 230-6) through active thermal error mapping—where 18+ temperature sensors feed real-time corrections into the CNC controller every 200 ms. This reduces ambient drift impact by up to 65% compared to passive thermal compensation.

Crucially, repeatability isn’t just about positioning—it’s about force control during finishing passes. Machines with adaptive feedrate control (AFC) modulate spindle torque and feed speed based on real-time cutting force monitoring (±0.5 N resolution), preventing micro-chatter that degrades surface integrity below Ra 0.8 µm—critical for adhesive bonding and conformal coating adhesion.

Key Technical Specifications for Sub-100-Micron Aluminum Machining

These specifications are not theoretical—they reflect actual factory acceptance test (FAT) criteria applied during commissioning at European and Chinese EV battery enclosure plants. Machines failing any one parameter require re-tuning or hardware retrofit before release to production.

Procurement Decision Framework: What Buyers Actually Evaluate

Procurement professionals prioritize measurable, audit-ready evidence—not marketing claims. Top-tier buyers apply a 5-point validation framework during supplier evaluation: (1) documented FAT reports, (2) third-party calibration certificates (e.g., DAkkS or CNAS-accredited labs), (3) thermal drift logs across 72-hour continuous operation, (4) traceable repeatability data per ISO 230-2, and (5) demonstrable integration with MES/SCADA for SPC tracking.

Lead time is equally decisive: standard delivery for configured CNC machining centers ranges from 22–28 weeks. However, pre-qualified “EV Housing Ready” packages—including thermal modeling support, fixture interface kits, and metrology probe calibration—compress deployment to 14–18 weeks. This accelerates ramp-up for new platform launches by 3–5 months.

Total cost of ownership (TCO) calculations now include predictive maintenance licensing (typically $18,000–$25,000/year), spare spindle modules ($120,000–$190,000), and annual recalibration ($8,500–$13,000). These represent 22–28% of 5-year TCO—making service contract terms non-negotiable in RFQs.

Critical Procurement Evaluation Dimensions

• Traceability: Does the OEM provide full serial-number traceability for all motion components (guideways, ball screws, encoders)?
• Software Lock-in: Are post-warranty updates restricted to proprietary OS versions requiring OEM-certified engineers?
• Fixture Interface Standardization: Does the machine support ISO 26623-1 (modular pallet system) for seamless transfer between roughing and finishing cells?
