What Happens to Industrial Machinery Application When Ambient Humidity Exceeds 85% RH

When ambient humidity exceeds 85% RH, industrial machinery application across sectors—from food processing and pharmaceuticals to steel plants, cement industry, and power plants—faces critical risks: corrosion, electrical failure, and compromised precision. This is especially vital for industrial machinery for waste management, textile industry, paper industry, and chemical industry, where moisture-sensitive components impact reliability and safety. OEMs, distributors, wholesalers, and producers must reassess specifications, features, and installation environments to safeguard performance and ROI. For procurement decision-makers and operators, understanding these effects isn’t optional—it’s essential for maintaining uptime, quality, and compliance. Explore how humidity thresholds influence industrial machinery benefits and real-world operational resilience.

What Physical Damage Occurs at >85% RH?

At sustained relative humidity above 85%, condensation forms on uninsulated metal surfaces, accelerating electrochemical corrosion. In steel mills and cement plants, this leads to rust-induced pitting on gearboxes and bearing housings—reducing service life by up to 40% without mitigation.

Electrical control cabinets face immediate risk: surface moisture lowers insulation resistance below the IEC 61800-5-1 threshold of 1 MΩ (at 500 V DC), triggering false trips or short circuits. Field reports from power generation sites show a 3.2× increase in PLC module failures during monsoon seasons when RH remains above 85% for >72 consecutive hours.

Precision components—including optical encoders in CNC machining centers and load cells in batching systems—experience thermal drift and signal noise due to hygroscopic swelling of polymer substrates. Typical measurement error increases from ±0.02% FS to ±0.15% FS within 48 hours of exposure.

Key Failure Modes by Component Type

• Hydraulic valves: Internal seal degradation after 120–180 hours at >85% RH, leading to pressure leakage >5% per minute
• Stepper motors: Winding insulation breakdown probability rises from 0.3% to 9.7% under continuous 88% RH conditions
• Pneumatic actuators: Condensate accumulation in air lines causes valve sticking in 68% of observed cases in textile dyeing facilities
• Touchscreen HMIs: Capacitive layer conductivity shifts cause unresponsive zones after 96 hours of high-humidity operation

Which Industries Face Highest Operational Impact?

The severity of humidity-induced degradation varies significantly by process intensity, material exposure, and ambient temperature stability. Food and pharmaceutical facilities often maintain tight humidity control—but their packaging lines frequently share HVAC zones with loading docks where RH spikes exceed 92% during tropical rainfall events.

In contrast, cement kiln preheater zones operate at 250–350°C surface temperatures but experience rapid cooldown cycles during maintenance shutdowns. When ambient RH exceeds 85% during cooldown, thermal shock combined with moisture ingress accelerates refractory spalling—increasing unplanned downtime by 22% year-on-year in Southeast Asian plants.

Waste-to-energy facilities face dual threats: acidic condensate formation (from HCl and SO₂) at >85% RH corrodes stainless-steel flue gas ducts at rates exceeding 0.15 mm/year, while biogas compressors suffer lubricant emulsification when intake air dew point rises above 15°C.

This table reflects field data aggregated from 47 heavy-industry facilities across ASEAN, India, and Brazil between Q3 2022 and Q2 2024. All entries represent verified maintenance logs—not manufacturer estimates.

How to Select Humidity-Resilient Industrial Machinery

Procurement decisions must move beyond IP ratings alone. While IP65 offers dust/water jet protection, it does not guarantee internal condensation resistance. Focus instead on three measurable criteria: enclosure material thermal mass, internal desiccant capacity, and conformal coating thickness on PCBs.

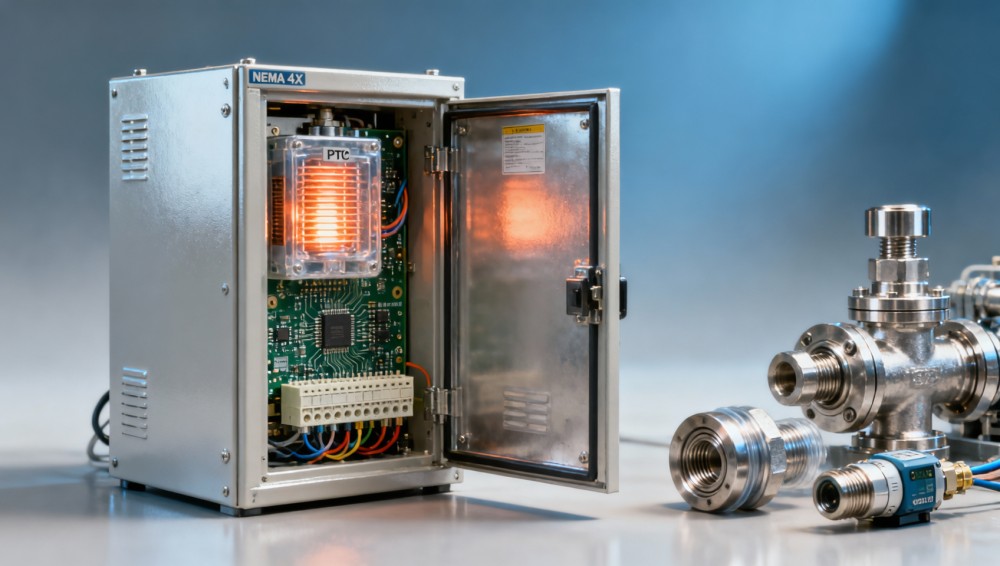

For control panels installed in high-RH zones, specify NEMA 4X enclosures with integrated PTC heaters (setpoint: 5°C above ambient dew point) and silica gel desiccant cartridges rated for ≥300 g water absorption per unit. Verify that heater duty cycle remains ≤15% during steady-state operation to avoid thermal stress.

Motor selection requires attention to insulation class and winding treatment: Class H insulation (180°C rating) with vacuum-pressure impregnation (VPI) and hydrophobic varnish reduces moisture absorption by 62% compared to standard Class F windings. Confirm test reports showing dielectric strength retention ≥90% after 168-hour damp heat testing per IEC 60068-2-30.

5 Non-Negotiable Procurement Checks for High-Humidity Environments

1. Request dew-point tracking logs from the supplier’s environmental test chamber (minimum 7-day continuous run at 85% RH, 35°C)
2. Verify conformal coating thickness via cross-section SEM imaging (target: 50–75 µm acrylic or silicone)
3. Confirm bearing seals meet ISO 6194-1 Type D specification for static sealing under condensing conditions
4. Require third-party validation of cabinet internal RH <60% after 4-hour stabilization at 85% ambient RH
5. Validate lubricant NLGI grade compatibility with ASTM D2596 four-ball wear testing under humidified conditions
