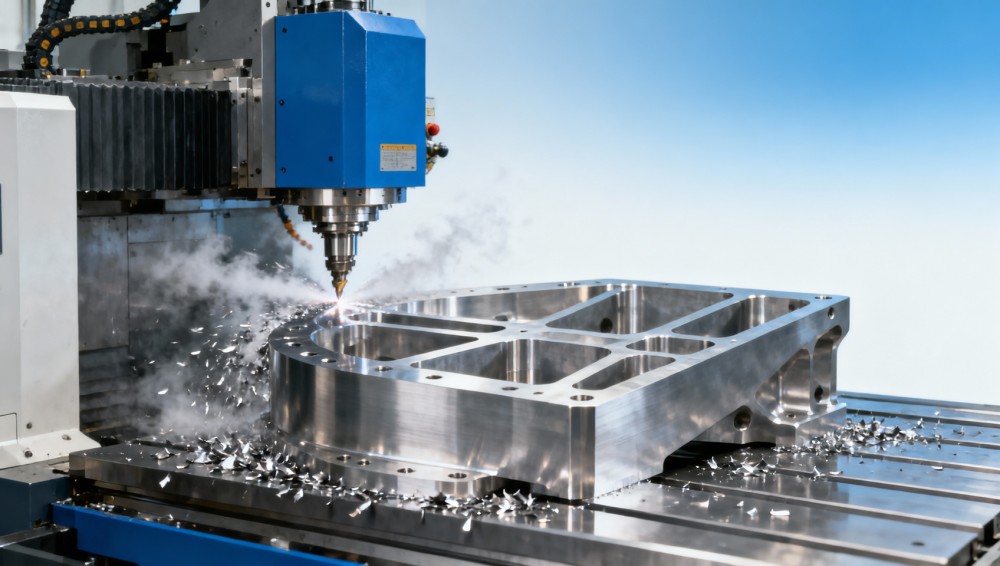

Aerospace equipment technology: Why titanium alloy machining rates slowed despite new NC tooling

Despite advances in NC tooling, titanium alloy machining rates in aerospace equipment technology remain stubbornly slow—posing critical challenges for machinery procurement, smart manufacturing trends adoption, and aerospace supply chain resilience. This slowdown impacts not only aircraft component lead times but also ripple effects across the transportation equipment news landscape, heavy machinery market updates, and industrial export news. For procurement personnel, operators, and enterprise decision-makers navigating tightening energy saving and emission reduction policy frameworks, understanding root causes—from material properties to tool-path optimization—is essential. In this analysis, we unpack technical bottlenecks, benchmark global practices, and link findings to broader industrial market updates and aerospace equipment technology evolution.

Material Physics: Why Titanium Alloys Resist High-Speed Machining

Titanium alloys—especially Ti-6Al-4V (Grade 5)—dominate structural airframe and engine components due to their exceptional strength-to-density ratio (≈4.4 g/cm³) and thermal stability up to 600°C. Yet these same properties create intrinsic machining resistance: low thermal conductivity (≈7 W/m·K, less than 1/7 that of aluminum), high chemical reactivity at elevated temperatures, and pronounced work hardening behavior. When cutting speeds exceed 30–45 m/min, localized heat builds rapidly at the tool-chip interface, accelerating flank wear and promoting built-up edge formation.

Unlike steel or aluminum, titanium does not deform plastically in a predictable manner under shear. Its hexagonal close-packed (HCP) crystal structure yields anisotropic flow stress—requiring 2.5–3× higher specific cutting force (2,800–3,500 MPa) than austenitic stainless steels. This directly limits feed rate selection: most aerospace shops cap axial depth of cut at 0.3–0.5 mm per pass to avoid chatter-induced tool fracture or surface integrity loss.

Thermal management remains non-negotiable. Conventional flood coolant often fails to penetrate the narrow kerf zone, resulting in ineffective heat extraction. Industry benchmarks show that even with high-pressure through-spindle coolant (70–100 bar), temperature at the cutting edge still peaks between 650–850°C—well above the 600°C threshold where rapid diffusion bonding between titanium chips and carbide inserts occurs.

This table confirms why titanium cannot leverage speed gains from modern CNC platforms. Even with advanced PVD-coated micro-grain carbide tools, the fundamental physics constrain achievable metal removal rates (MRR). Shops report average MRR for Ti-6Al-4V at just 1.2–2.1 cm³/min—versus 8.5–12.3 cm³/min for equivalent aluminum parts on identical machines.

Tooling & Process Gaps: Where NC Advancements Fall Short

New NC tooling—including high-rigidity spindles (≥40 N·m torque), real-time vibration damping systems, and AI-driven adaptive control—has delivered measurable gains in cycle time for steel and nickel alloys. Yet titanium applications show diminishing returns beyond 5–8% improvement over legacy setups. Root cause analysis points to three persistent gaps: tool life predictability, path-dependent heat accumulation, and insufficient integration between CAM software and machine kinematics.

Most aerospace manufacturers still rely on conservative tool life thresholds: 15–25 minutes for roughing, 8–12 minutes for finishing. Tool wear is monitored manually or via acoustic emission sensors with ≥3-second latency—too slow to prevent catastrophic failure during deep-pocket milling. Meanwhile, CAM systems rarely model transient thermal gradients across complex 5-axis tool paths. A single 30° tilt change can increase localized heat by 22–35%, triggering premature insert chipping.

Procurement teams face trade-offs: high-performance coated inserts (e.g., AlTiN + nanolayered MoS₂) cost 3.5× more than standard grades but extend usable life by only 18–22% in titanium. And while hybrid additive-subtractive platforms promise integrated cooling channels, fewer than 7% of Tier-1 aerospace suppliers have deployed them operationally—mainly due to certification delays averaging 14–18 months per part family.

Operational Realities: Shop Floor Constraints Beyond the Machine

Even with optimal tooling and programming, shop-floor execution introduces bottlenecks. Titanium parts require ≥3 post-machining inspection steps: dimensional CMM verification (±0.015 mm tolerance), surface integrity assessment (Ra ≤ 0.8 µm), and residual stress mapping (via X-ray diffraction). Each adds 4–9 hours per component—often doubling total lead time versus theoretical machining duration.

Operator skill remains a limiting factor. Machining titanium demands continuous spindle load monitoring, manual feed override adjustments every 90–120 seconds during contouring, and strict adherence to chip-thinning compensation rules. Training programs for titanium-specific NC operation average 120 hours—nearly 3× longer than for stainless steel workflows.

Energy efficiency targets compound pressure. Under EU Regulation (EU) 2023/1734 and China’s GB 30254-2023, new machining centers must achieve ≤1.8 kWh/kg-MRR for titanium. Current best-in-class systems deliver 1.92–2.05 kWh/kg-MRR—forcing shops to throttle spindle RPM or reduce feed rates to meet compliance, further lowering effective machining rates.

These constraints reveal why procurement decisions must look beyond spindle specs or tool catalog claims. A holistic evaluation includes thermal system integration, inspection throughput capacity, and operator training infrastructure—not just cutting performance metrics.

Strategic Procurement Guidance for Aerospace Suppliers

For procurement professionals evaluating NC solutions for titanium, prioritize four criteria: (1) documented titanium-specific MRR validation data—not generic alloy benchmarks; (2) closed-loop thermal feedback capability (e.g., infrared sensor fusion with spindle control); (3) OEM-certified toolpath libraries for Ti-6Al-4V, including verified parameters for deep-cavity, thin-wall, and impeller geometries; and (4) service-level agreements covering tool life prediction accuracy (±8% tolerance) and thermal drift compensation response time (<1.2 sec).

Global sourcing adds complexity. Machines certified to AS9100 Rev D and ISO 13373-3 for condition monitoring are available from German and Japanese suppliers—but delivery lead times stretch to 22–26 weeks. Domestic U.S. and Chinese alternatives offer 8–12 week delivery but require third-party validation for FAA/EASA Part 21G compliance—a process adding $220,000–$380,000 in engineering overhead.

Decision-makers should mandate supplier demonstrations using actual production titanium parts—not test coupons. Require measurement of surface integrity (microhardness gradient, white layer thickness), dimensional stability after 48-hour stress relief, and energy consumption tracking across 3 full shifts. These KPIs expose real-world readiness far better than catalog RPM or torque ratings.

Conclusion: Moving Beyond Speed Metrics to Systemic Resilience

Titanium alloy machining rates remain constrained not by lack of innovation—but by the misalignment between NC hardware capabilities and the thermomechanical reality of the material. Accelerating aerospace equipment technology requires shifting focus from peak cutting speed to end-to-end system resilience: thermal predictability, inspection integration, operator enablement, and regulatory-compliant energy use.

For procurement teams, this means evaluating suppliers on verifiable titanium workflow outcomes—not just tooling specs. For operators, it means adopting real-time adaptive protocols rather than static parameter sets. For enterprise decision-makers, it signals investment in cross-functional capability building—not isolated machine upgrades.

To support your strategic transition, we provide tailored titanium machining assessments—including MRR benchmarking against 12 global aerospace benchmarks, thermal modeling reports, and procurement scorecards aligned with AS9100 Rev D and ISO 50001 requirements. Request your customized aerospace equipment technology assessment today.
