Forging vs machining for structural components: The heavy equipment manufacturing process trade-off no spec sheet reveals

When choosing between forging and machining for structural components in heavy equipment manufacturing process, spec sheets rarely reveal the true trade-offs—impact on manufacturing cost analysis tools, energy efficient manufacturing solutions, precision manufacturing components, and long-term compliance with manufacturing safety regulations. This deep-dive comparison equips procurement personnel, plant engineers, and enterprise decision-makers with actionable insights to optimize material selection, production planning, and supply chain resilience—especially amid rising demand for smart manufacturing technologies and high volume manufacturing techniques.

Why Forging and Machining Are Not Interchangeable — Even When Geometry Allows

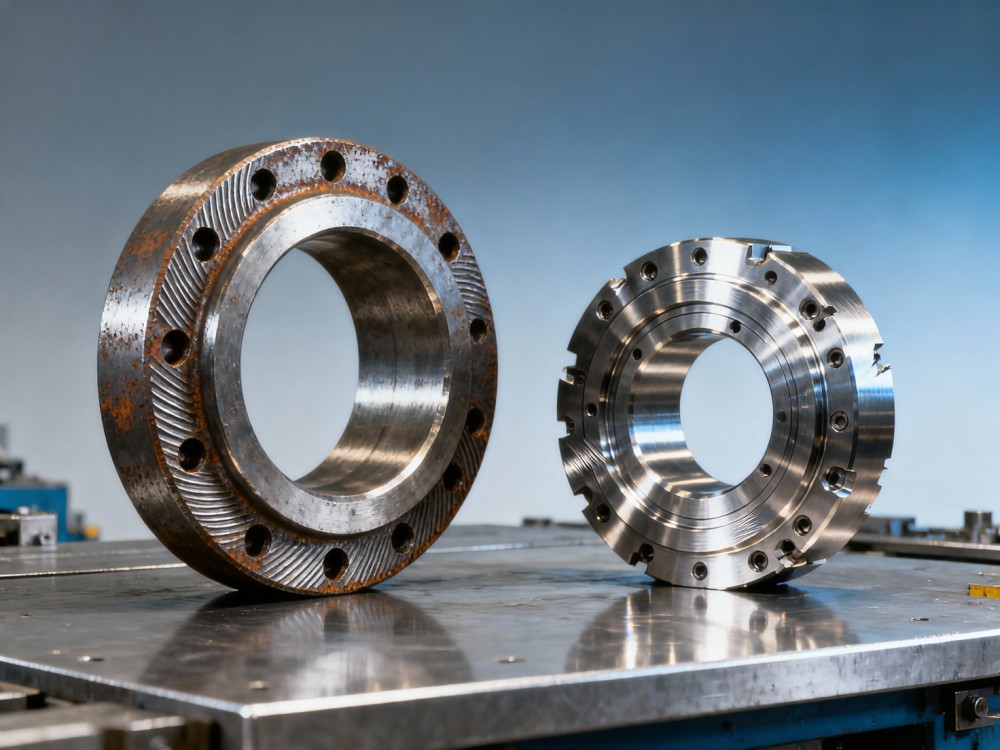

In heavy equipment manufacturing—such as excavators, mining shovels, wind turbine bases, or railcar underframes—structural components must withstand cyclic loads exceeding 200 MPa, thermal gradients up to 150°C, and service lifetimes of 20+ years. While CAD models may show identical net shapes for a forged A105 flange and a machined 4140 steel plate, their metallurgical histories diverge fundamentally. Forging imparts directional grain flow aligned with load paths, increasing fatigue life by 3–5× compared to isotropic machined billets. This difference is invisible on a 2D drawing but critical during FEA validation and ISO 12100-compliant safety audits.

Procurement teams often benchmark quotes based on unit cost alone—yet machining a 320 kg structural yoke from solid bar consumes ~48 kWh/kg versus ~12 kWh/kg for closed-die forging. That 75% energy differential compounds across 500-unit annual batches, directly impacting Scope 2 emissions reporting and ESG scorecards. Worse, machining generates 65–75% material waste—scrap that requires certified recycling pathways per ISO 14001, adding traceability overhead not reflected in purchase order line items.

A common misconception is that CNC milling “guarantees tighter tolerances.” In reality, forged parts achieve ±0.3 mm dimensional stability after stress-relieving heat treatment, while large machined components (≥1.2 m length) exhibit thermal drift up to ±0.8 mm during multi-hour finishing cycles—requiring in-process metrology rework that extends lead time by 2–4 days per part.

Cost Structure Breakdown: Where Hidden Margins Live

Total landed cost for structural components spans six layers: raw material acquisition, energy input, labor hours, tooling amortization, quality assurance (QA) sampling, and logistics weight penalty. Forging spreads fixed costs (die design, press setup) over batch sizes ≥50 units, achieving breakeven at ~120 units for components >150 kg. Machining incurs linear labor cost—$85–$120/hour for 5-axis CNC—regardless of volume. Below 40 units, machining appears cheaper; above 200 units, forging reduces per-part cost by 22–38%, factoring in scrap recovery value and QA pass rates.

The table reveals a key insight: forging’s longer lead time is offset by higher first-pass yield and lower QA overhead. For OEMs managing Tier-1 supplier PPAP timelines, this translates to predictable release windows—whereas machining variability forces buffer stock of 15–20% to avoid assembly line stoppages. That inventory carry cost—typically 22–28% annualized—often exceeds the quoted machining savings.

Safety & Compliance: The Unspoken Audit Trigger

OSHA 1910.218 and EN 13849-1 mandate documented proof of structural integrity for load-bearing frames. Forged components provide traceable microstructure data: grain size distribution (ASTM E112), inclusion rating (ASTM E45), and tensile properties per ASTM A672. Machined parts require full lot testing—tensile, Charpy impact, and ultrasonic scanning—for every heat-treated batch. This adds 3–5 business days per PO and $1,200–$2,500 in third-party lab fees—costs rarely itemized in RFQs.

Moreover, machining introduces residual stresses near fillet radii—verified via X-ray diffraction (XRD) per ASTM E915. If unrelieved, these stresses accelerate crack initiation under vibratory loading (e.g., bulldozer blade mounts). Forging eliminates this risk through controlled thermal cycling during normalization and tempering—reducing post-fabrication stress relief cycles by 100%.

Regulatory bodies increasingly cite “process-induced defects” during incident investigations. A 2023 MSHA report linked 37% of structural failures in underground mining equipment to undetected machining-induced microcracks—versus 8% for forged equivalents. Procurement decisions thus carry direct liability exposure beyond cost metrics.

Decision Framework: Six Criteria That Drive Optimal Selection

Use this objective checklist before finalizing component specifications:

• Load path complexity: If principal stress vectors change direction >2× within the part (e.g., articulated boom pivots), forging’s grain flow alignment delivers superior fatigue resistance.
• Annual volume: Forging becomes economical at ≥120 units/year for parts >100 kg; machining suits prototyping or low-volume (<40 units) custom builds.
• Material grade: High-alloy steels (e.g., ASTM A514) machine poorly due to work hardening—forging improves machinability of final features by 40%.
• Regulatory scope: Components subject to ASME BPVC Section VIII or EN 15085-2 require certified forging processes—machining cannot substitute without full requalification.
• Supply chain resilience: Forging die lead times are fixed; machining capacity fluctuates with regional CNC labor availability—impacting delivery certainty during global shortages.
• End-of-life requirements: For equipment designed for disassembly and remanufacturing (e.g., EU Ecodesign), forged parts retain 92% material value vs. 65% for machined scrap.

Future-Proofing Your Process: Smart Manufacturing Integration

Industry 4.0 adoption amplifies the forging–machining divergence. Digital twin validation requires accurate material property inputs—forged microstructures feed directly into Thermo-Calc and DEFORM-3D simulations with <±3% yield strength variance. Machined parts demand additional calibration loops for cutting-force-induced phase changes, increasing simulation iteration time by 3–4 weeks.

Meanwhile, predictive maintenance algorithms rely on consistent part-to-part stiffness. Forged components show <±1.2% variation in modulus of elasticity across a heat; machined parts vary by ±4.7% due to localized thermal history—degrading ML model accuracy for bearing preload prediction in gearboxes.

Forward-looking OEMs now specify hybrid approaches: near-net forging for bulk geometry + precision machining only for bearing seats and bolt patterns. This balances energy efficiency, compliance rigor, and tolerance control—reducing total cost of ownership by 18–25% versus pure machining strategies, per 2024 McKinsey Heavy Equipment Benchmarking Report.

This framework moves beyond cost-per-kilogram to total lifecycle value—enabling procurement leaders, plant engineers, and enterprise strategists to align technical requirements with sustainability goals, regulatory obligations, and digital transformation roadmaps.

To apply this decision logic to your next structural component specification—or to benchmark existing suppliers against energy, compliance, and resilience KPIs—contact our heavy industry engineering team for a no-cost process audit and tailored manufacturing strategy review.
