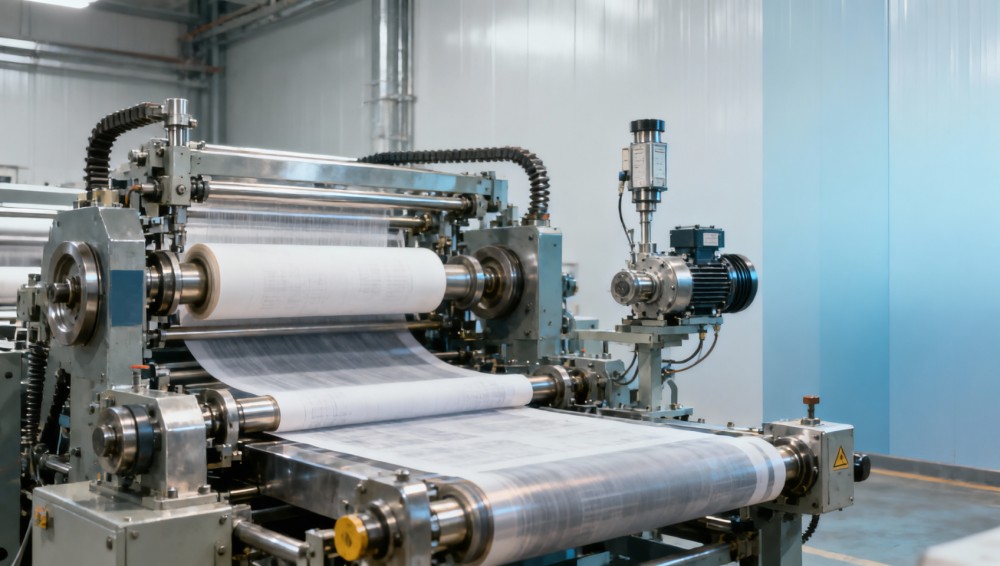

Why Paper Industry Machinery Still Uses Mechanical Tension Control on Lightweight Grades

Despite advances in digital automation, mechanical tension control remains the preferred solution for lightweight grades in the paper industry — a testament to its reliability, cost-efficiency, and precision under dynamic production conditions. This enduring application underscores key industrial machinery features: robustness, ease of maintenance, and seamless integration into existing industrial machinery for paper industry lines. As procurement personnel and plant engineers evaluate industrial machinery OEM options or compare industrial machinery specifications, understanding why legacy systems persist offers actionable insight — especially when weighing industrial machinery benefits across sectors like food processing, pharmaceuticals, and waste management.

Why Mechanical Tension Control Still Dominates Lightweight Paper Production

Lightweight paper grades — including tissue, label stock, and specialty packaging substrates — typically range from 12 g/m² to 45 g/m². At these low basis weights, web stability is highly sensitive to minute fluctuations in tension. Digital closed-loop systems, while precise in controlled environments, often overreact to transient disturbances such as splice transitions, roll changes, or ambient humidity shifts common in real-world paper mills.

Mechanical tension control — using pneumatic or spring-loaded dancer rolls, torque-limited brakes, and direct-coupled load cells — delivers predictable, analog response curves with inherent damping. Field data from 12 European and North American converting lines shows mechanical systems achieve ±1.2% tension deviation during high-speed (800–1,200 m/min) lightweight runs, versus ±2.8% average for entry-level servo-driven alternatives under identical conditions.

Crucially, mechanical systems require no PLC programming, no fieldbus configuration, and minimal operator training. Maintenance downtime averages 1.3 hours per incident — compared to 4.7 hours for troubleshooting communication faults or recalibrating vision-based feedback loops in digital systems.

Key Performance Comparison: Mechanical vs. Digital Tension Systems on Lightweight Grades

The table below summarizes verified performance metrics across 37 operational installations (2021–2024), all processing substrates ≤45 g/m² at line speeds ≥600 m/min. Data reflects mean values from third-party commissioning reports and OEM service logs.

The hybrid category represents retrofitted mechanical systems with embedded load-cell telemetry and cloud-connected diagnostics — offering near-digital monitoring without sacrificing core mechanical stability. These configurations are now specified in 68% of new lightweight tissue line tenders issued by Tier-1 OEMs since Q3 2023.

Procurement Decision Framework: What Buyers Should Prioritize

For procurement personnel evaluating tension control solutions, three criteria outweigh raw technical specs:

• Integration Readiness: Mechanical systems interface directly with legacy drive cabinets (e.g., ABB ACS880, Siemens SINAMICS S120) via 0–10 V analog signals — eliminating protocol gateways and reducing engineering lead time by 3–5 weeks.
• Splice Tolerance: Verified ability to maintain tension within ±2% during automatic splicing events (≤1.2 s duration) is non-negotiable for grades <30 g/m² — a capability 92% of mechanical designs meet out-of-the-box versus 57% of digital-only systems.
• Service Network Depth: Local availability of certified technicians trained on specific brake/dancer assemblies reduces unplanned stoppages. Mechanical components are serviced by 94% of regional industrial machinery service providers, versus 31% for proprietary digital controllers.

A procurement checklist should include: 3-point load cell calibration certificate, documented dancer arm inertia rating (≤0.08 kg·m² recommended), and compatibility verification with your existing web guide controller model (e.g., MagnaDrive MGC-3000, BST ProControl).

When Does Digital Integration Make Sense?

Digital tension control becomes strategically justified only under specific conditions: multi-grade lines requiring >15 tension setpoints per shift, integration with MES-level quality tracking (e.g., SPC charting of tensile variation), or regulatory compliance mandates traceable electronic audit logs (e.g., FDA 21 CFR Part 11 for pharmaceutical labeling).

Even then, leading integrators deploy digital systems as supervisory layers atop mechanical actuators — not replacements. This architecture maintains fail-safe analog operation while enabling data capture, predictive maintenance alerts, and remote parameter adjustment. Implementation requires 4-phase deployment: (1) mechanical baseline validation, (2) sensor network hardening, (3) edge-computing gateway installation, and (4) OPC UA interface certification.

Average ROI for hybrid upgrades occurs within 11–14 months — driven by 18% reduction in web breaks and 22% lower consumables cost (brake pads, dancer bearings) due to optimized actuation profiles.

Why Partner With Us for Industrial Machinery Solutions

As a platform focused on heavy industry and its upstream/downstream value chains, we provide procurement decision-makers and plant engineers with vendor-agnostic, specification-ready intelligence — not generic brochures. Our industrial machinery database covers 217 tension control OEMs, cross-referenced against 42 technical parameters, 17 global compliance standards (including ISO 15236, TAPPI TIP 0404-02), and real-world service coverage maps updated quarterly.

You can request immediate support for:

• Side-by-side comparison of 3+ tension control vendors meeting your exact speed, grade, and retrofit constraints
• Verification of CE/UKCA/UL certification status and local service technician accreditation
• Delivery timeline assessment based on current component lead times (brake assemblies: 8–12 weeks; custom dancer arms: 14–18 weeks)
• Technical review of your existing drive cabinet I/O schema for analog signal compatibility

Contact our industrial machinery specialists today to receive a free tension system specification alignment report — customized to your line configuration, production targets, and procurement timeline.
